MONDRAKER

Bring the Mondraker Foxy Bike on your next highland adventure and enjoy one of the road cycle routes.

For over a decade, the Foxy has been winning over fans and beating their opponents to the finish line.

Set to continue its success, the revamped Foxy is ready for even more challenging competitions, climates and travel around the country. Take the Mondraker FoxyBike on your next highland getaway and enjoy one of the road cycle routes.

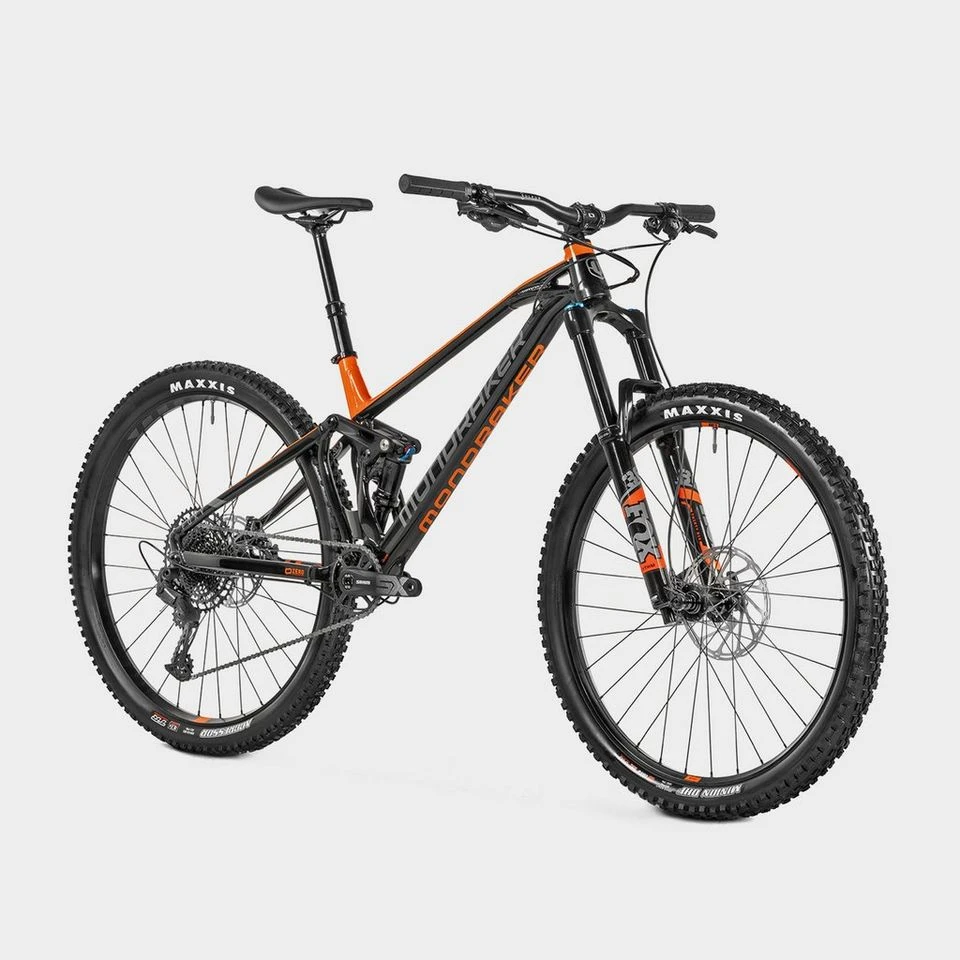

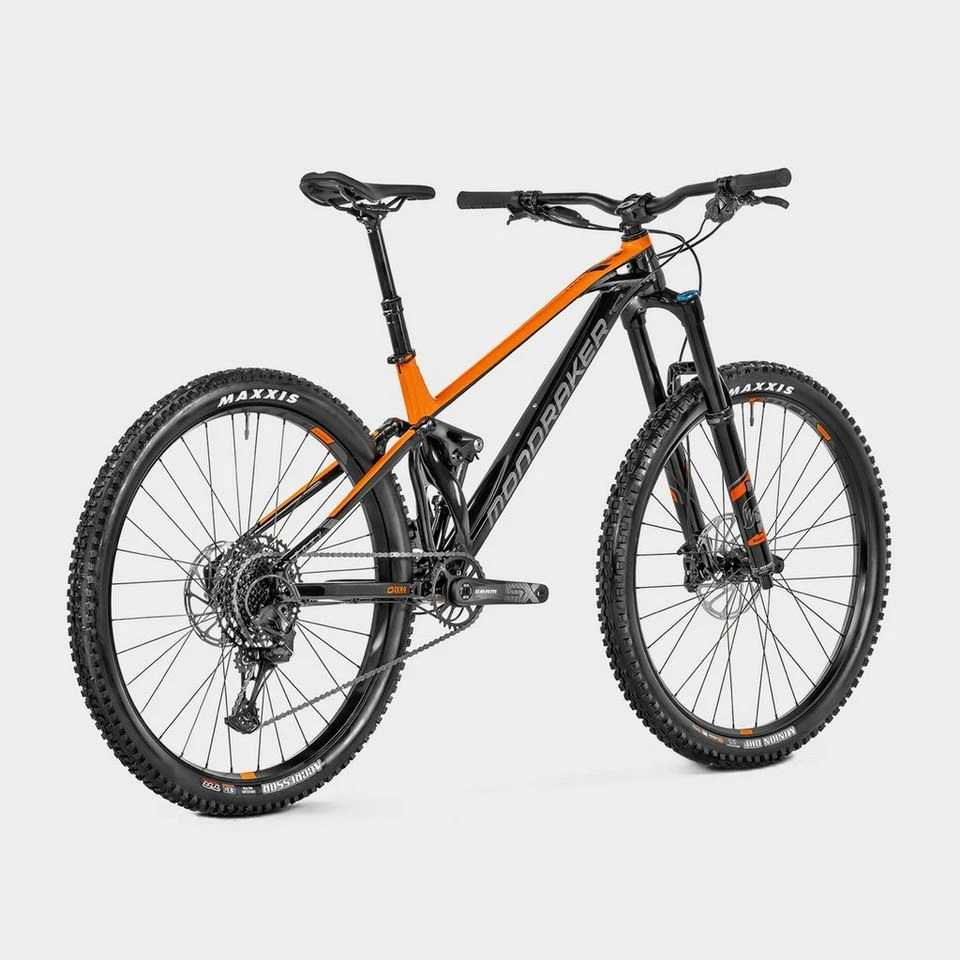

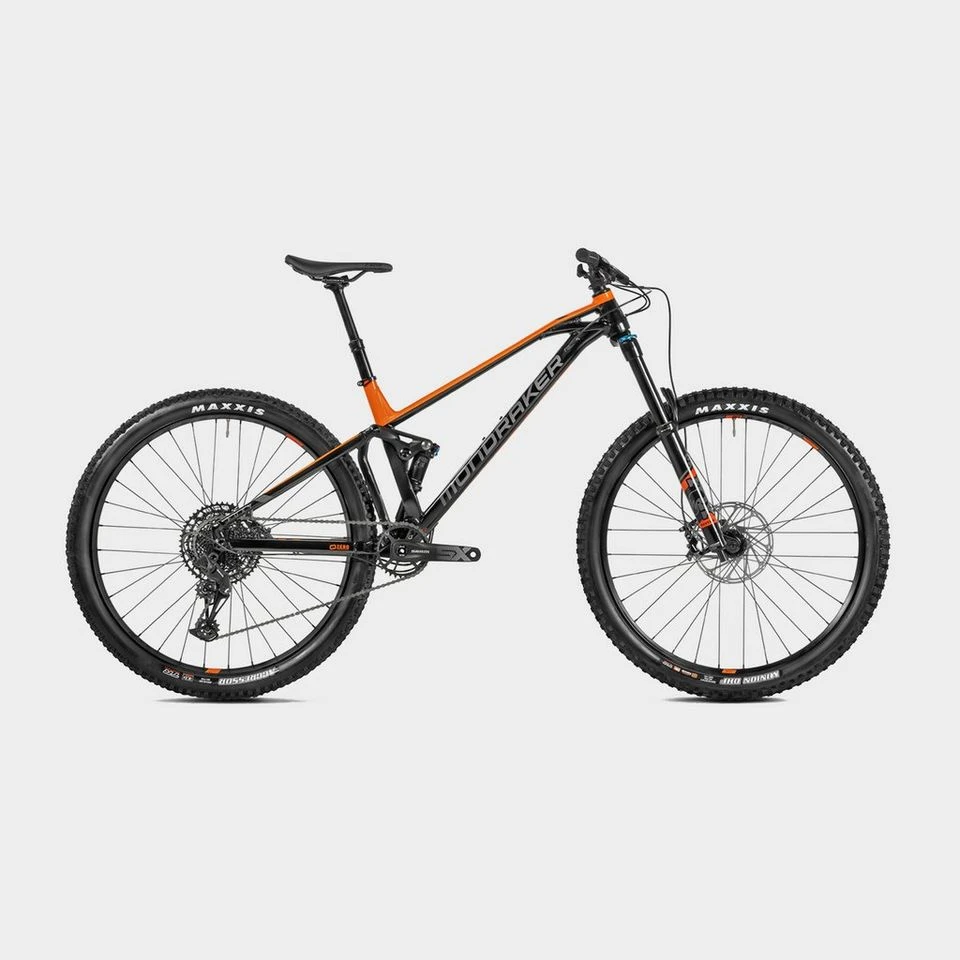

With 160mm of rear travel, 170mm up front and Mondrakers pioneering Forward Geometry all riding on 29″ wheels, this bike is the enduro bike that you have all been anticipating.

The bike gets triple compound EXO+ protection Maxxis 29er Wide Trail grip, powerful 200mm brake rotors and smooth SRAM Eagle gearing, all set to help you deliver superhero performance.

Maxxis claims that EXO+ improves tread puncture protection by 27%, sidewall durability by 51%, and resistance to pinch flats by 28%.

Model Year	2021
Riding Type	Enduro / All-Mountain, Freeride / Bike Park
Rider	Unisex

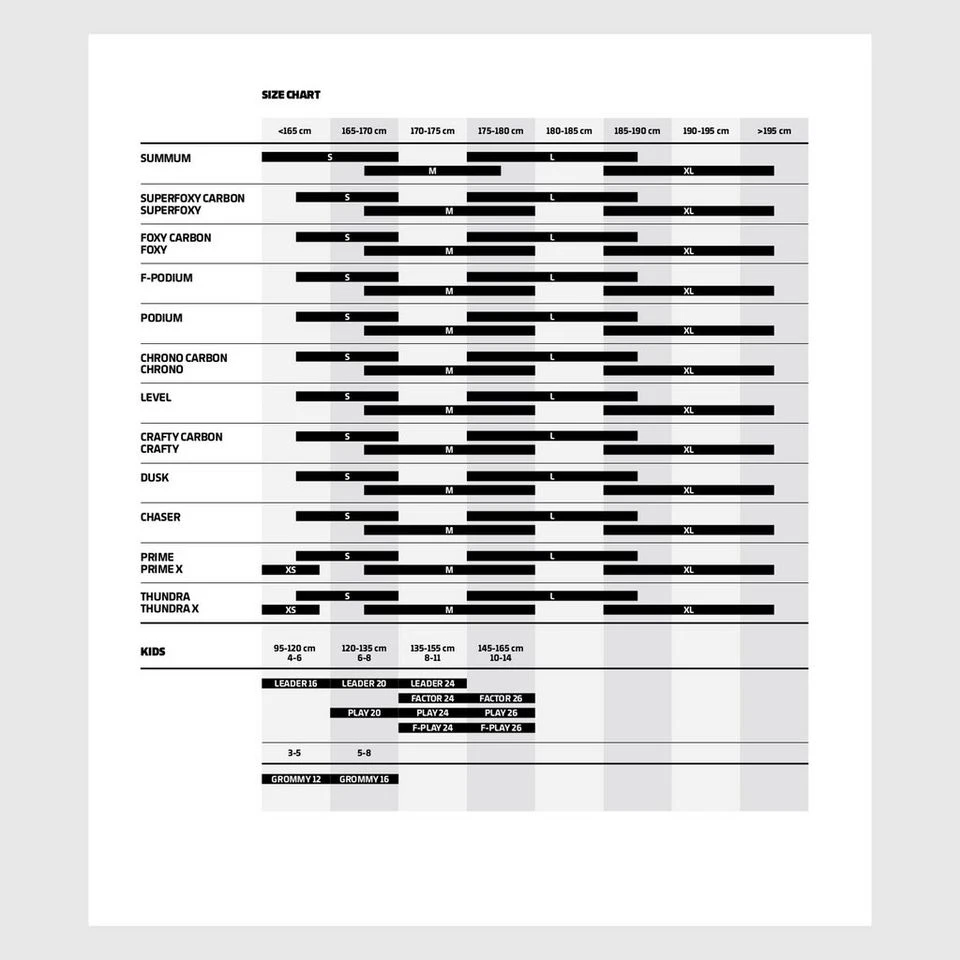

Sizes and Geometry	S:380mm, M: 420mm, L: 470mm, XL: 510mm
Wheel Size	29″
Frame Material	Aluminum
Frame Material Details	6061 hydroformed Stealth Alloy Evo, one-piece Monoblock upper link
Rear Travel	160mm

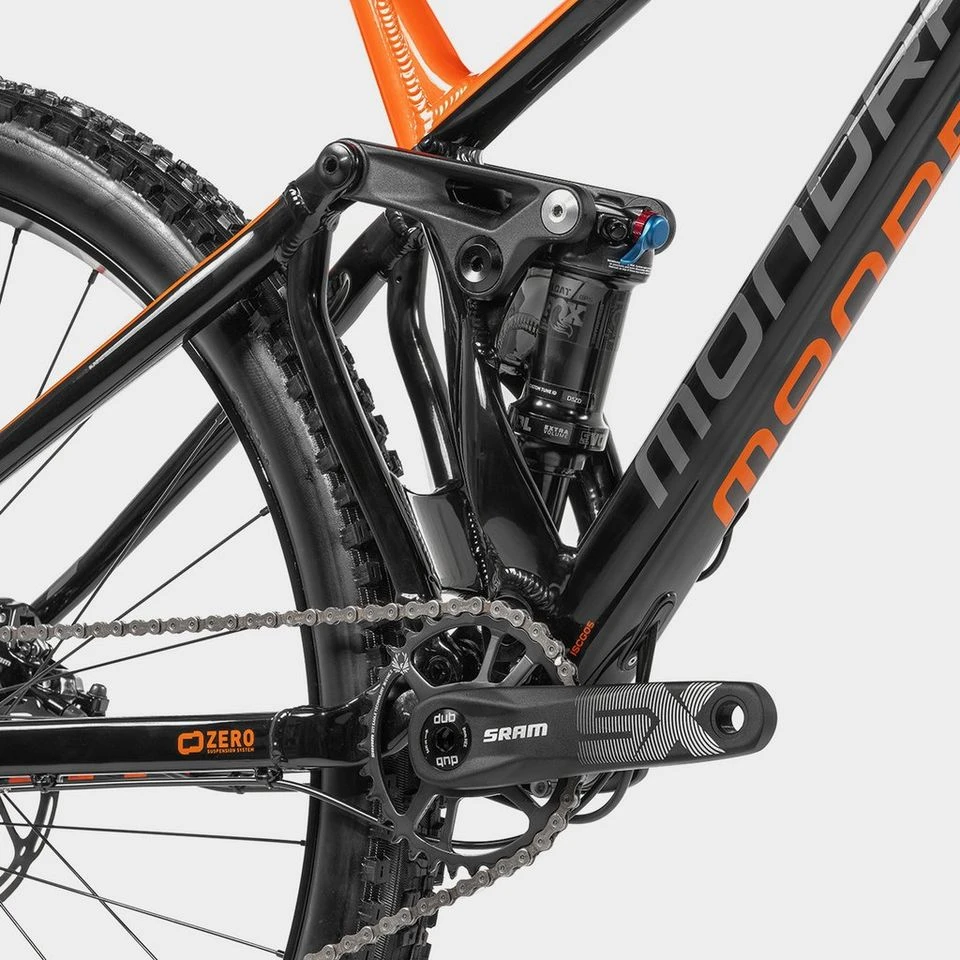

Rear Shock	Fox Float DPS LV EVOL Performance, 205×62.5mm. Settings: rebound, 3-position
Fork	Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm.
Fork Travel	170mm
Head Tube Diameter	Tapered, 1.125″ top, 1.5″ bottom
Headset	ONOFF Saturn, ACB sealed bearings

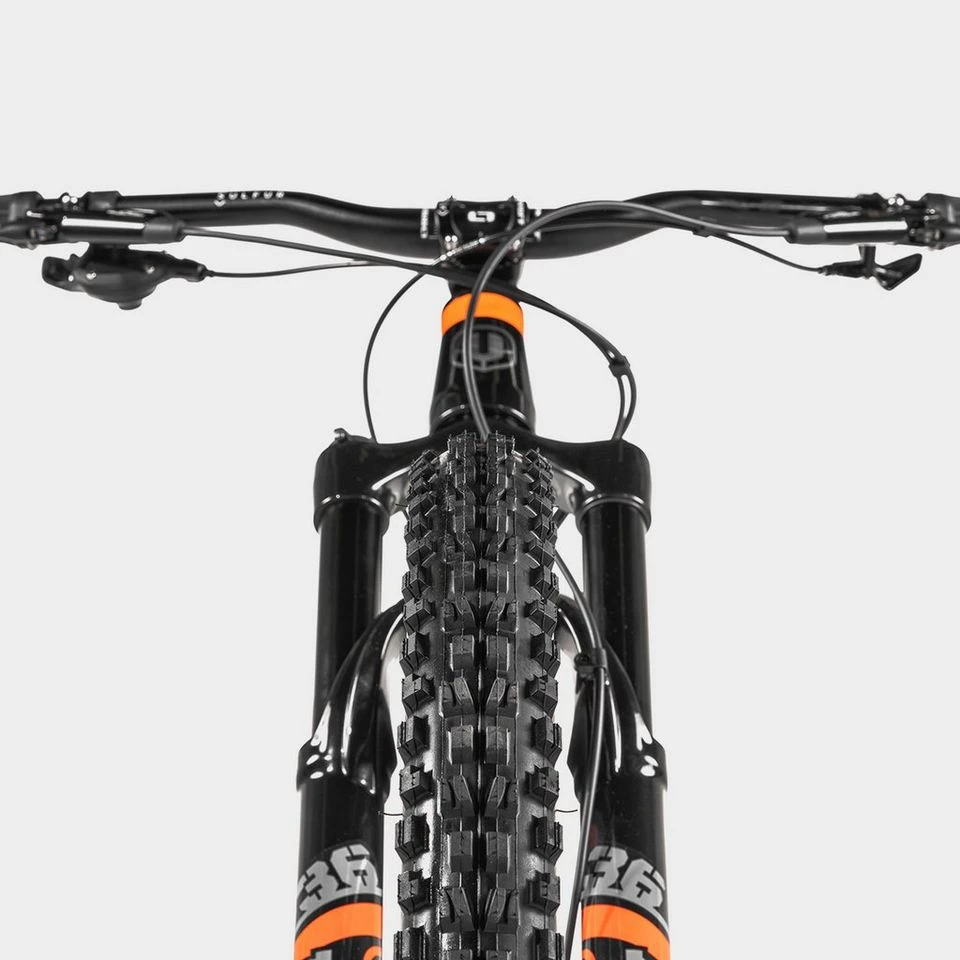

Handlebar	ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Stem	ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Grips	ONOFF Twin, 135mm length, single lock-on
Brakes	SRAM Code R, 4-piston, SRAM CenterLine 200mm 6-bolt rotors, steel-backed metal sintered pads
Brake Levers	SRAM Code R, tool-free reach adjust
Drivetrain	1x
Shifters	SRAM GX Eagle, 12-speed, Trigger, X-Actuation
Front Derailleur	None
Rear Derailleur	SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-Actuation
ISCG Tabs	ISCG05
Chainguide	None
Cranks	Sram SX Eagle, Boost, DUB axle
Chainrings	Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Bottom Bracket	SRAM DUB, sealed bearings, 73mm BSA threaded
Pedals	None
Chain	SRAM NX Eagle, 12-speed, PowerLock
Cassette	SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Rims	MDK-EP1 29 TLR ASY, asymmetrical rim, 30mm internal width, tubeless ready, 32 spokes
Hubs	Front: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts, Rear: Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
Spokes	CN round stainless steel

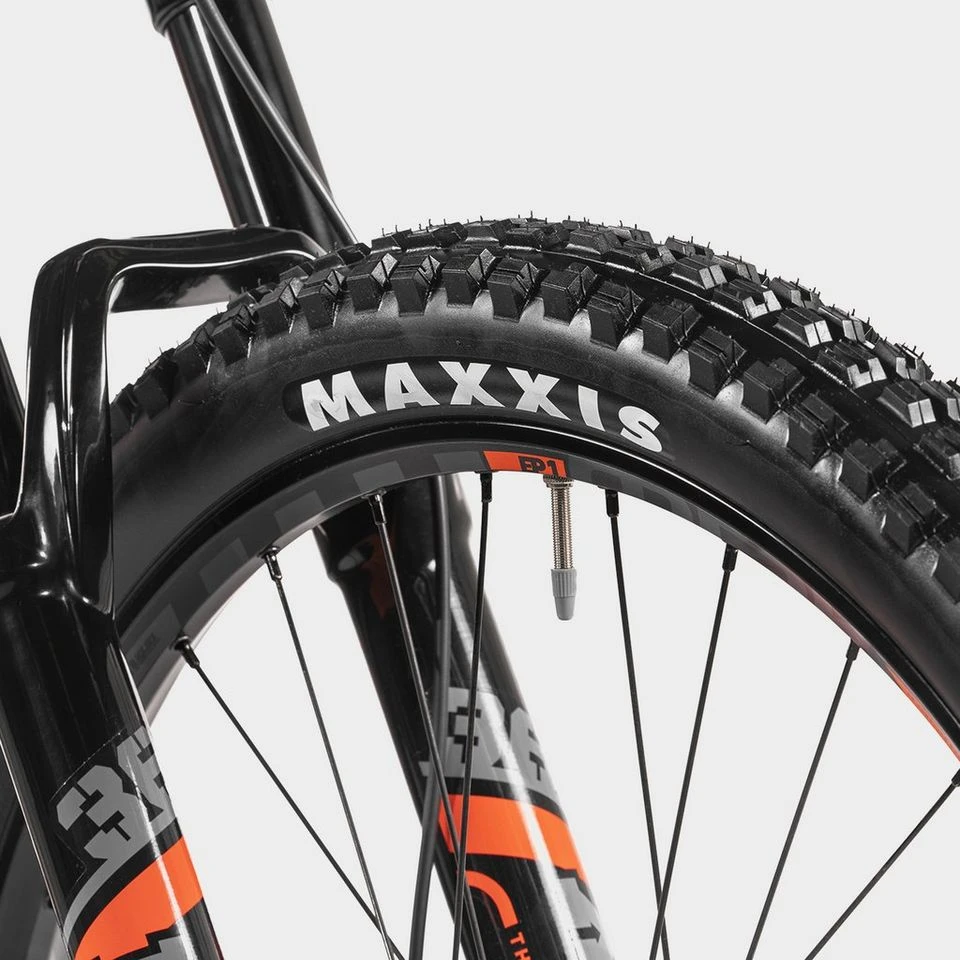

Tires	Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29″ x 2.5″ WT Rear: Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Saddle	SDG Bel-Air 3.0, LPU foam, steel rails
Seatpost	Onoff Pija dropper internal, S size: 337x100mm, M size 387x125m
Seatpost Diameter	31.6mm
Seatpost Clamp	Single bolt
Rear Dropout / Hub Dimensions	157x12mm SuperBoost
Max. Tire Size	29″ x 2.6″
Bottle Cage Mounts	One inside front triangle
Colors	Silver/Black/Red
Warranty	Lifetime frame with registration
Weight	15.5kg
Miscellaneous	Zero Suspension System Mondraker Forward Geometry Internal cable routing Max capacity sealed pivot bearings

**Some minor assembly is required. See our video (below the image) or consult our assembly guide for assistance.
